12 Cores Fiber Optic Trunk Cable Om4 Mtp/Pc Male - Lc/Upc Fanout 0.9mm 40cm

Brand Name : KEXINT

Model Number : 12 Core OM4 MTP-LC/UPC

Certification : CE/ROHS/ISO9001

Place of Origin : CHINA

MOQ : 10+ pcs

Price : dollars+11.86+pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000+pcs+day

Delivery Time : 8

Packaging Details : carton

Fiber Color : Magenta

Connector Type : MTP/MPO/LC or Customized

Cable Diameter : 3.0mm, 2.0mm,0.9mm

Length : 1M ,3M, 5M or customized

Jacket : PVC, LSZH, OFNP, OFNR,HFFR

Operating temperature : -40℃~85℃

Contact Now

12 Cores Fiber Optic Trunk Cable Om4 Mtp/Pc Male - Lc/Upc Fanout 0.9mm 40cm
MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion for demanding high speed networks where power budgets are critical.

Features:

* Low insertion loss and back reflection loss

* Ferrule end surface pre-domed

* Excellent mechanical endurance

* Good in repeatability

* Good in exchange

* Green production, CE, RoHS standard

Applications:
* Telecommunications
* CATV, LAN, MAN, WAN, test and measurement
* Military industry
* Medical
Specification:
Model
SM


MM
Connector A:MPO/MTP
Connector Fiber Count
8,12,24,48 Core
Polish
PC,APC
PC
Insertion Loss
Standard


≤0.70dB
≤0.50dB
Elite Low Loss
≤0.35dB
≤0.30dB
Return Loss
PC≥50dB,APC≥60dB
≥30dB
Durability(500 Matings)
≤0.2dB
Test Wavelength

1310/1550nm
850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish
PC,APC

PC
Return Loss
PC≥50dB,APC≥60dB
≥35dB
Durability(500 Matings)

≤0.2dB
Test Wavelength

1310/1550nm
850/1300nm

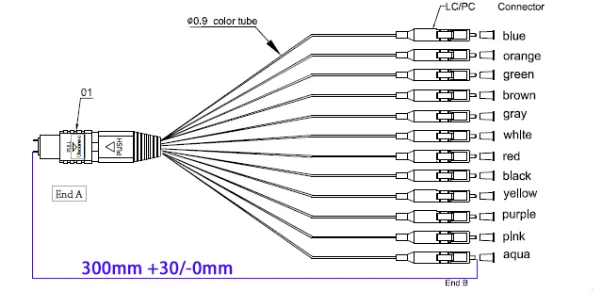

12 Cores Fiber Optic Trunk Cable Om4 Mtp/Pc Male - Lc/Upc Fanout 0.9mm 40cm

Note:
When the MPO/MTP connector is designed with pins, it is called male connector. On the contrary, it is called female connector.They mate together in the same way as traditional LC, SC and ST connectors except that MPO connectors require a male connector to be connected to a female connector.
